Item ID: 265095

**1 Offered at Best Price**

AMAT P5000 XT (Poly - Trench)

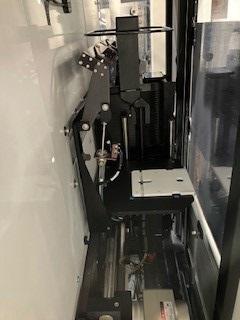

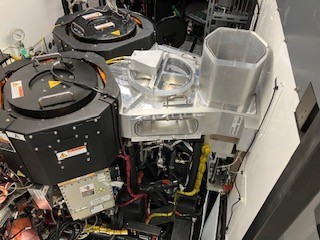

The tool offered is already in storage. The three images are from an identical system that is still in operation. The tool in storage was dismantled correctly and is stored optimally.The tool offered is already in storage. The three images are from an identical system that is still in operation. The tool in storage was dismantled correctly and is stored optimally.

Tool facts:

Applied Material P5000XT

-top mount elektronics and He backing

-2 Chamber Narrow Gap tool

-installed pos. Chamber A/B

-Standard Phase 3 Robot

-15 slot storage elevator

-ZA Slit Valves pos. A/B

-Wafer Positioning Sensor (WPS)

-Cassette loadport with 2 stages

-2 Monitor

-System SSD

-CF card Floppy emulator

-MXP Unibody chamber with Narrow Gap lid

-Turbo Seiki STP-301CVB

-Controller Seiki SCU-350D

-MKS Manometer

-7 Gas Sticks / Brooks GF 100 MFCs

-Gas: Hbr, NF3, NF3-2, N2, He/O2, Ar, CF4

-2x AMAT 1 heat exchanger / Stainless Steel hoses (50ft)

-2x ENI OEM 12B RF generators

-AC Box at RF Rack

... other image

Unit Price	Unstated
Number of Units	1
Manufacturer	Applied Materials
Model	P5000 XT
Wafer Size Range
Minimum	200 mm
Set Size	200 mm
Number of Chambers	2
Process Capabilities	2x MXP Narrow Gap Pos. A/B
Process Gases	Hbr, NF3, NF3-2, N2, He/O2, Ar, CF4
Accessories	see description
Other Information	see description
Power Requirements	208 V 50.0 A 50/60 Hz 3 Phase
Year of Manufacture	1999
Refurbished	YES
Condition	Very Good
Weight	2,205 lb (1,000 kg)

Shipping Weight	lb kg
Serial Number(s)	tbd
